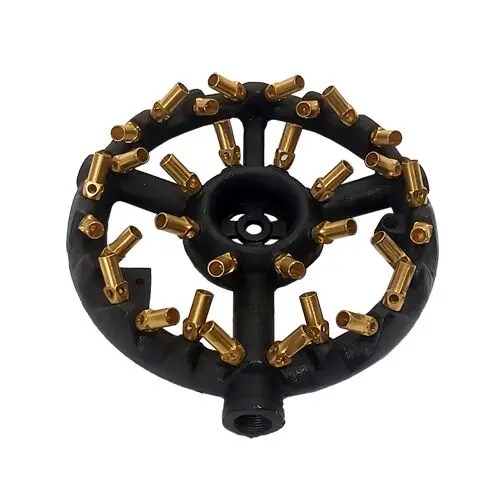

32 Jet Mongolian Burner LP Gas
32 Jet Brass Tip Mongolian Burner Cast Iron LPGas Wok Cooker Outdoor Stove 118mj
32 Jet Mongolian Burner for Commercial Stoves with high quality brass jets
Perfect for wok ranges. Ideal for outdoor restaurant use. Cast iron body, copper tips. 160,000 BTU

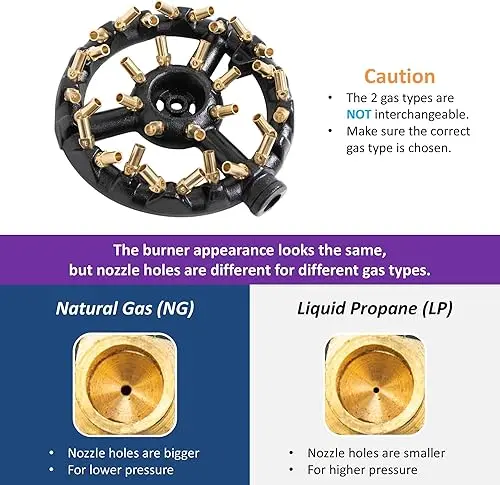

These burners are designed to work on a low pressure regulator only such as our TPA7010.
The use of a high pressure regulator on a low pressure burner will result in incomplete combustion and increased risk of fire/ gas leakage.
Made in Taiwan
103 MBTUH propane gas (#72), replacement tip #226807P
Wide heat area
Low spill tolerance
Round jet tips
10-1/2″ diameter
Appropriate for chamber sizes & usages - Cantonese chambers 18″, 20″, 22″
In demanding commercial kitchens, especially those specialising in Asian cuisine or large-batch cooking, consistent, high-intensity heat is absolutely crucial. Standard burners often fall short, leading to uneven cooking, slower service, and inefficient fuel consumption. You need a robust solution that can deliver powerful, uniform heat to meet the most demanding culinary tasks.

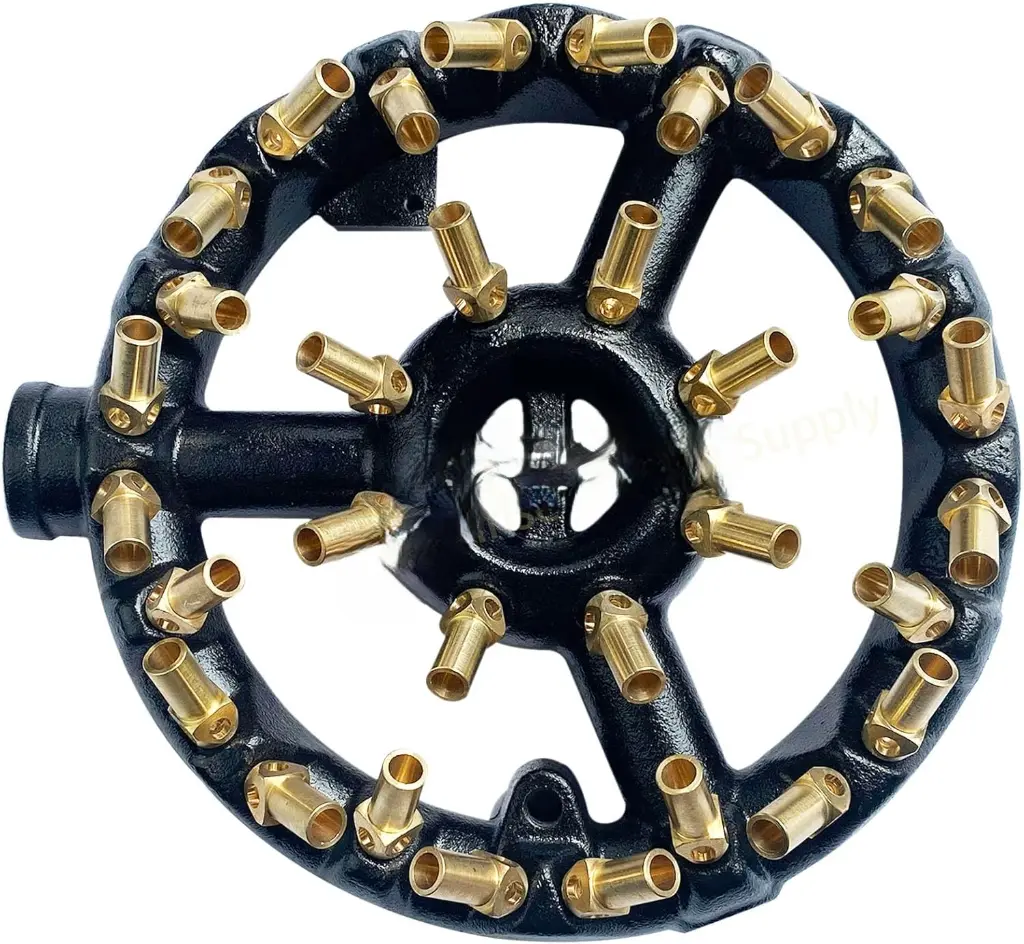

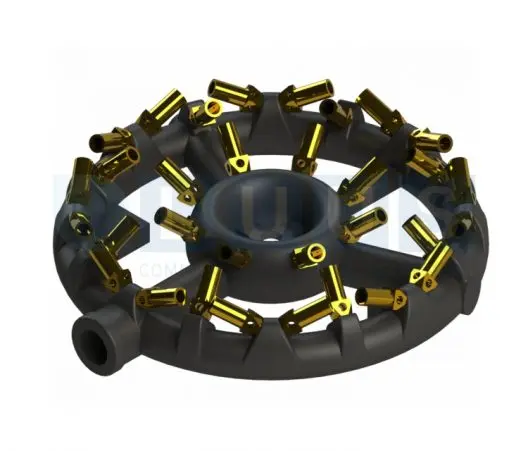

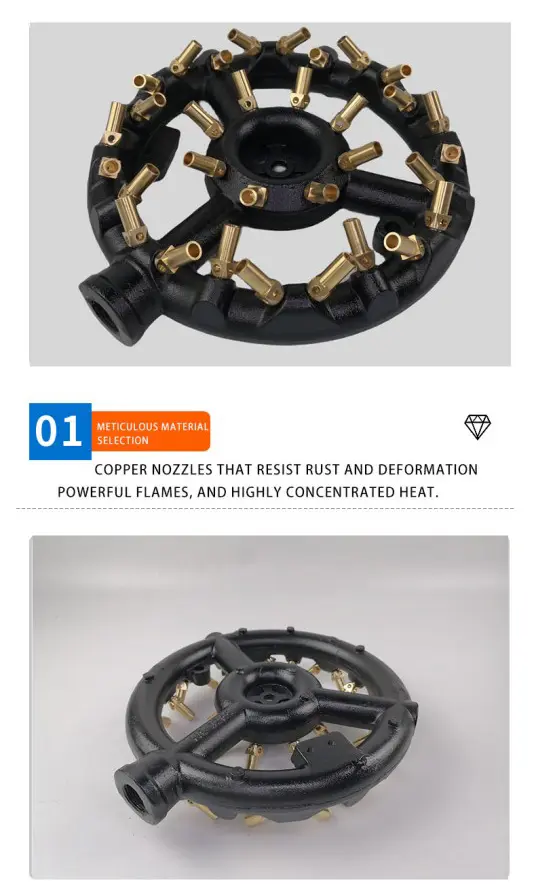

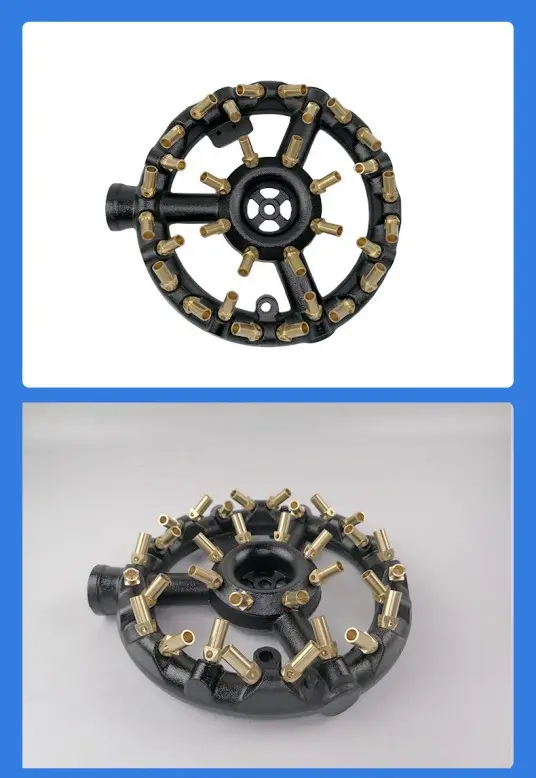

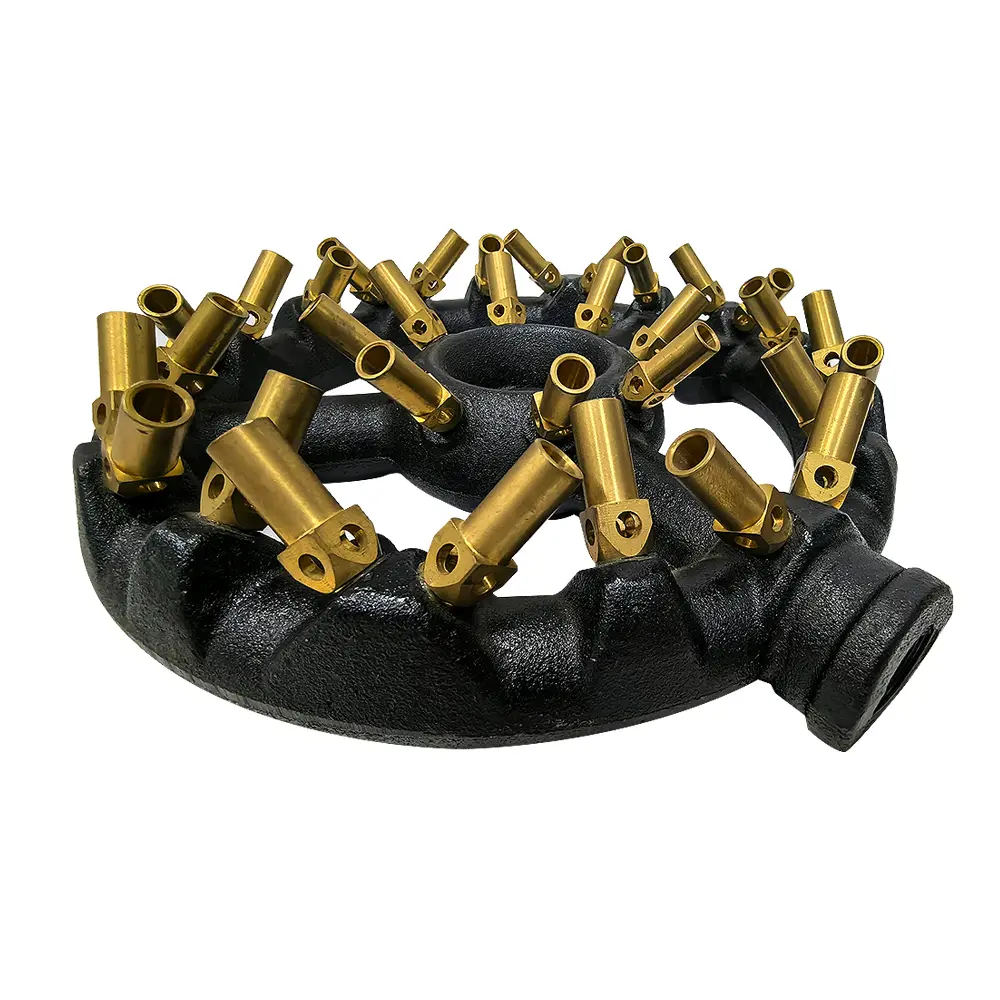

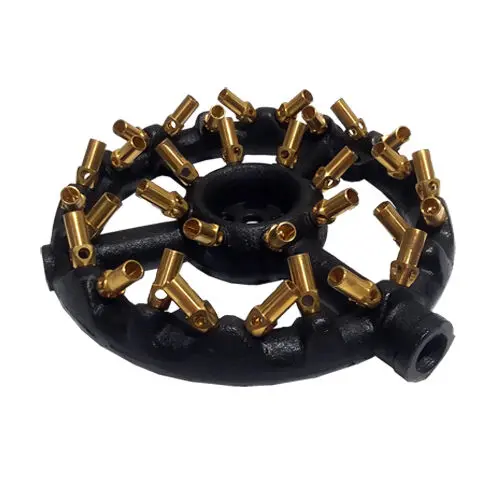

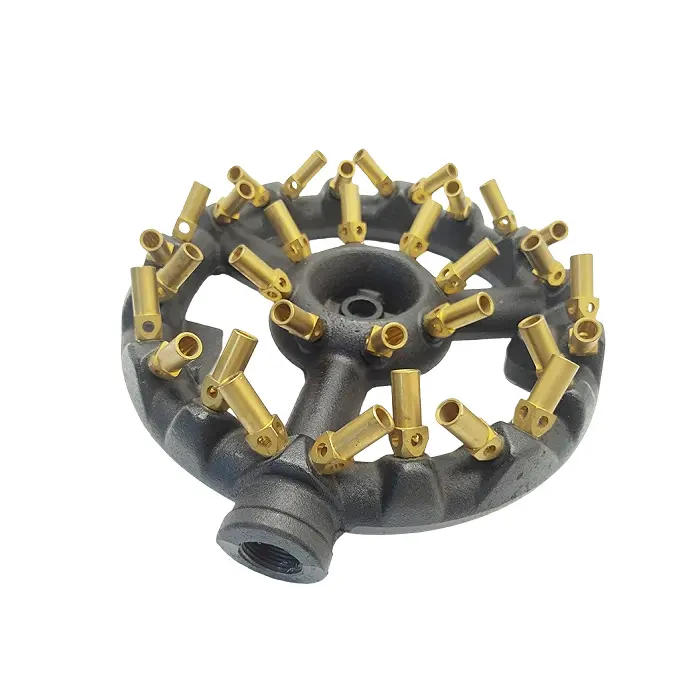

Our 32-Jet Cast Iron Gas Burner is engineered for exactly this purpose. Featuring large, calibrated brass jets strategically arranged around the circumference, this burner directs flames in varying directions to ensure optimal heat impingement and even distribution across large cooking surfaces. Crafted from heavy-duty cast iron and measuring approximately 10.5" (267mm) in diameter, it's built for superior durability in continuous commercial use.

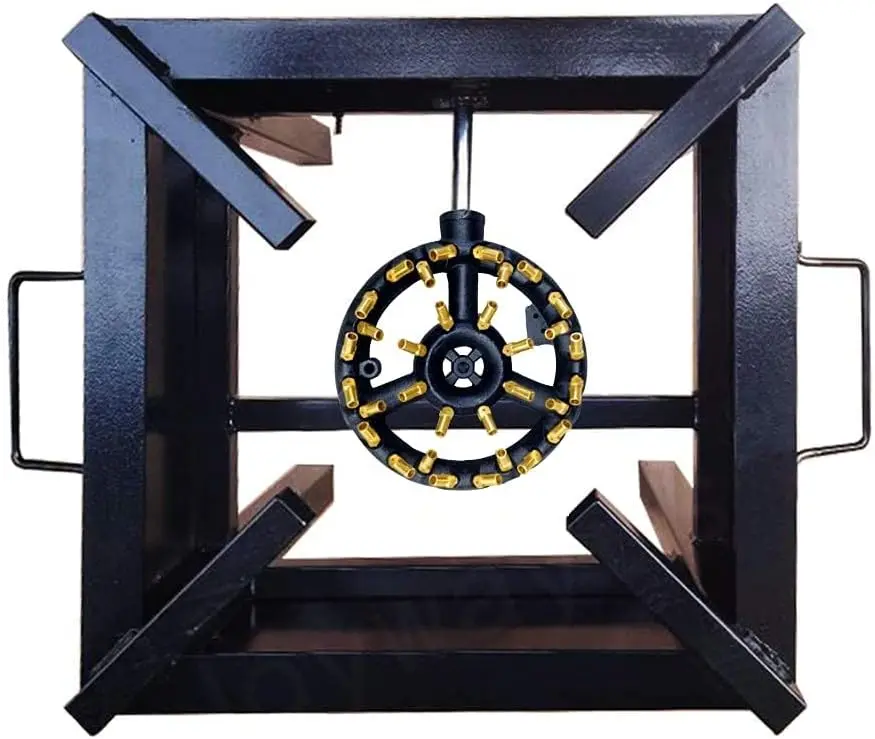

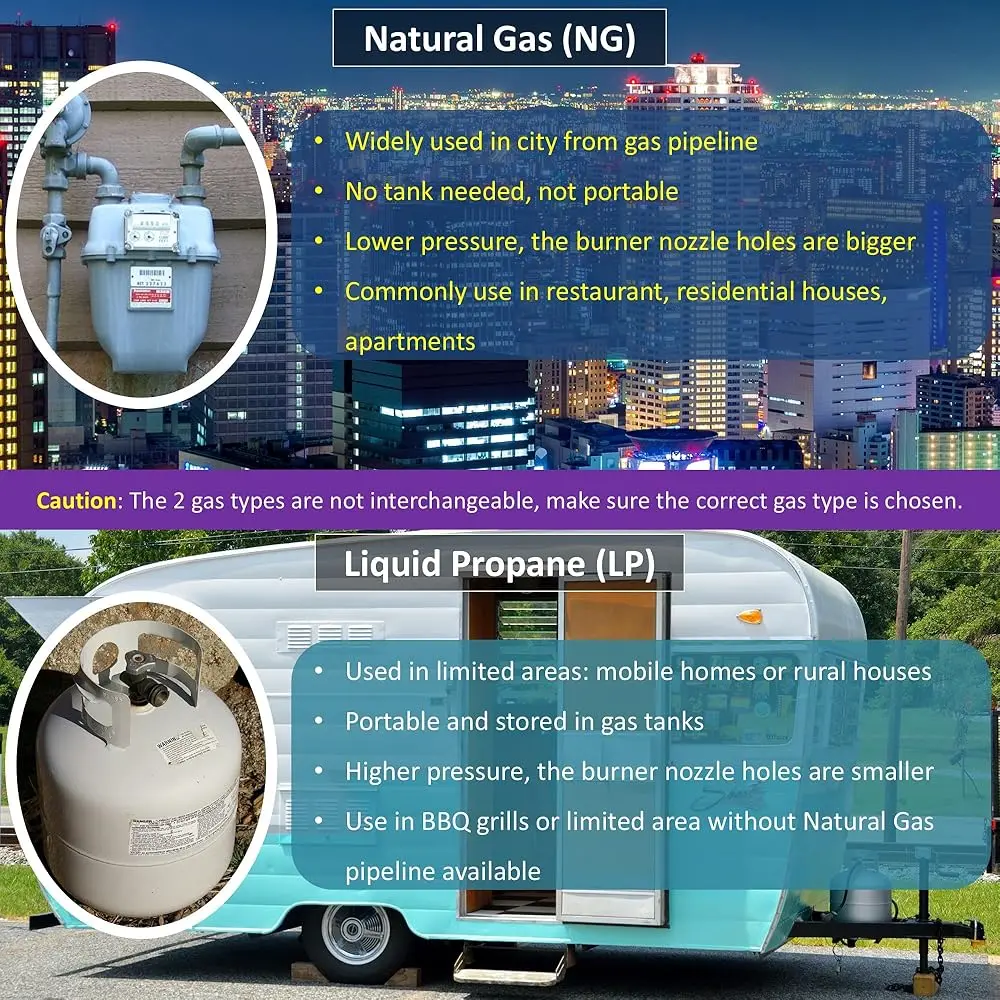

This 32-jet model is our most popular in the range, delivering a maximum flow rate of 147,000 BTU (43.1KW) for Natural Gas (NG) and 100,500 BTU (29.4KW) for Liquefied Petroleum Gas (LPG). Bottom (3/4" BSP) entry connection it offers excellent flexibility for installation. Primarily intended for outdoor use, these high-quality burners are ideal for commercial catering environments, including Indian stock-pot cookers, Chinese wok cookers, and hot plate ranges. They can also be used indoors when properly installed with adequate ventilation.
Key Features & Benefits
Exceptional Power (32 Jets): Unleashes significant heat output 100,500 BTU for LPG) through 32 precisely calibrated jets for rapid and highly efficient cooking.
Optimal & Even Heat Distribution: Large brass jets are strategically situated around the burner's circumference, firing in varying directions to provide uniform flame impingement across a wide surface, reducing "black pots" caused by poorly sized jets.

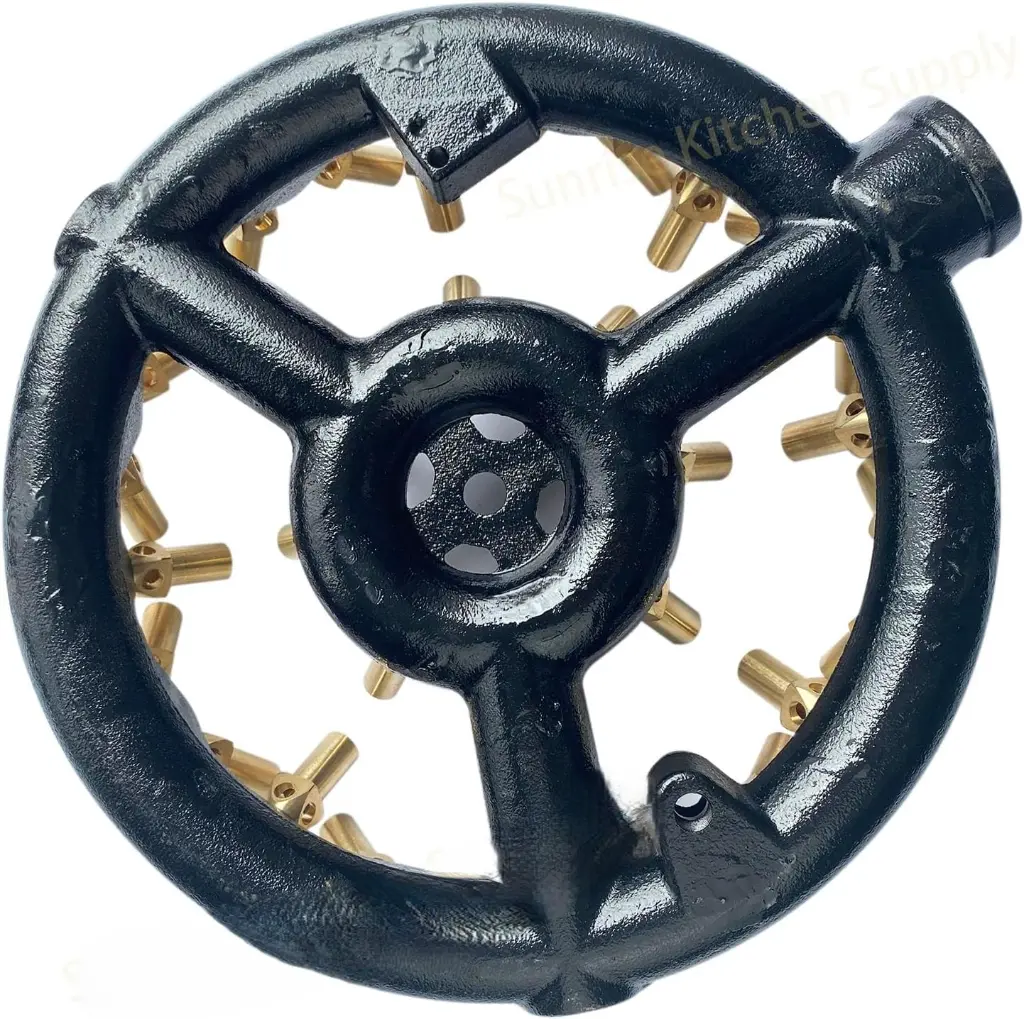

Robust Cast Iron Construction: Made from durable cast iron, ensuring exceptional longevity, stability, and resistance to warping even under extreme temperatures.
Flexible Mounting: Choose between Bottom Entry (3/4" BSP)for seamless integration into various commercial setups.
Large Diameter: At approximately 10.5" (267mm) in diameter, it's perfectly sized for large commercial woks, stockpots, and griddles.

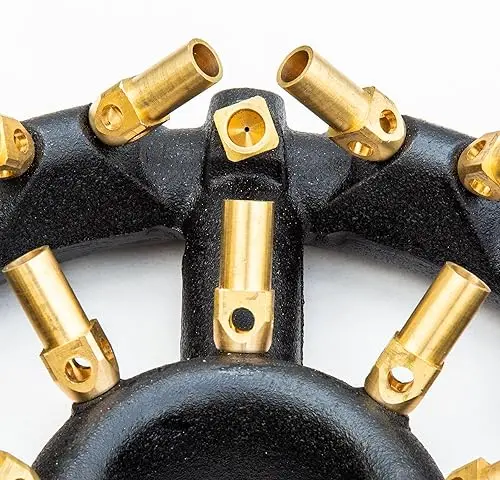

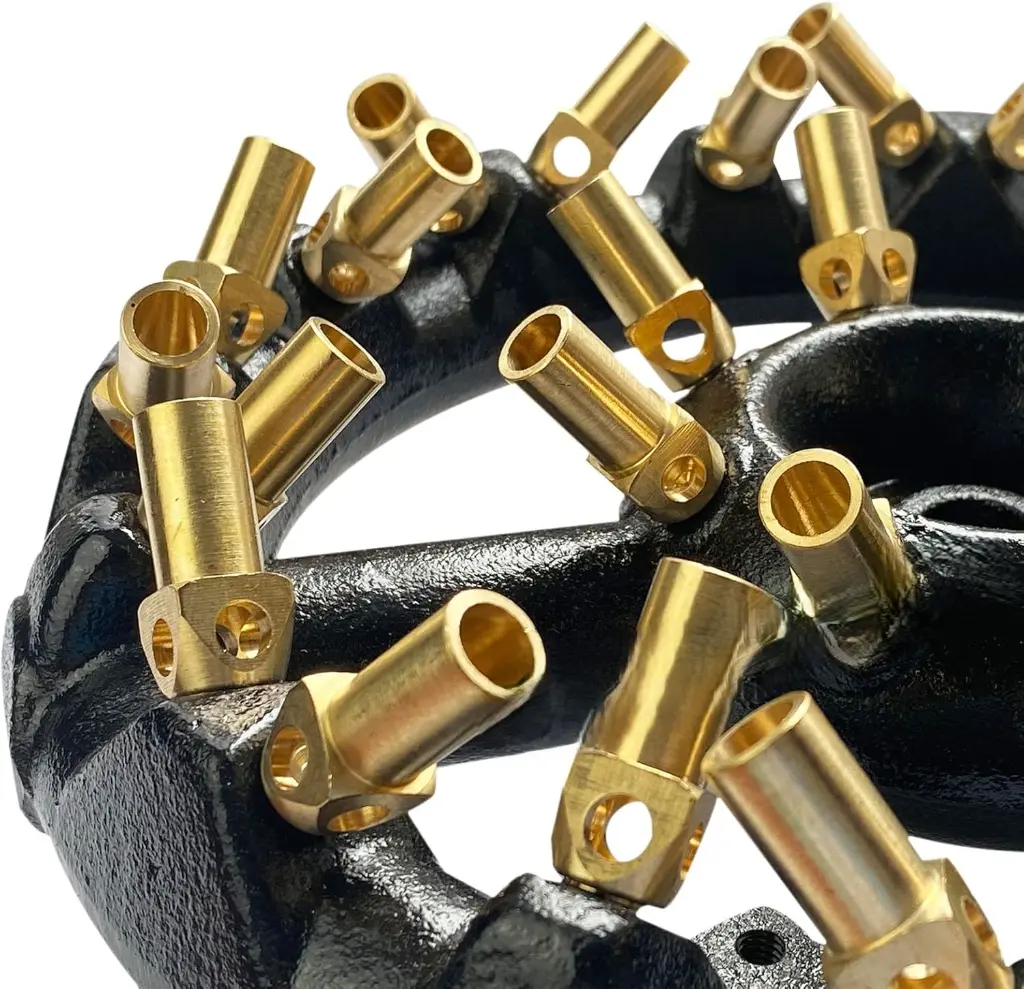

Durable Brass Jets: Calibrated brass jets resist corrosion and wear, maintaining precise gas flow and flame quality over time.
Competitively Priced: Outstanding value for a high-performance commercial burner.
How a Commercial Jet Burner Works

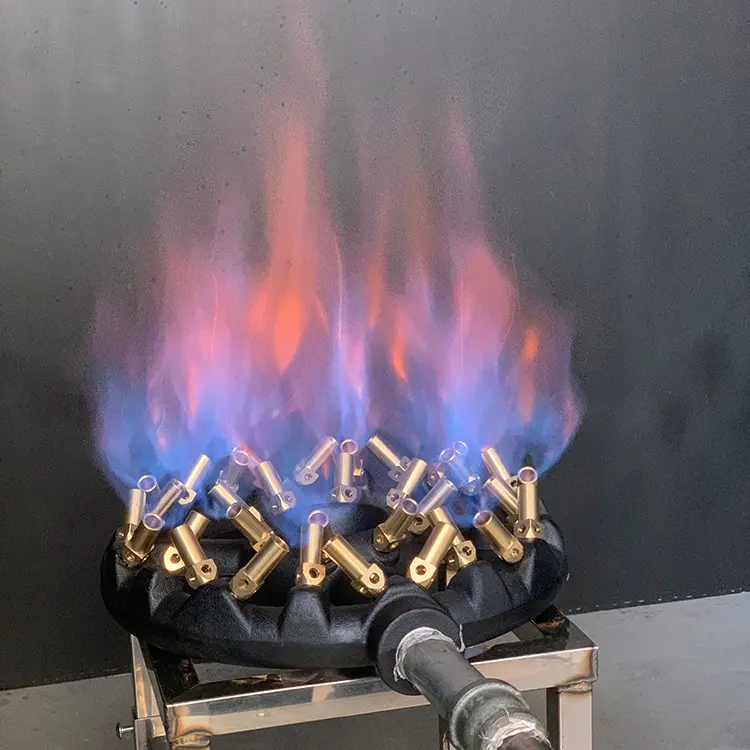

A commercial jet burner, like our 32-jet model, operates by forcing gas through multiple small, precisely drilled brass jets. This creates high-velocity gas streams that draw in primary air for efficient combustion. The jets are arranged in specific patterns (around the circumference in this case) to direct the flames for maximum heat transfer and even coverage across the cooking vessel. The cast iron body of the burner provides a stable, heat-resistant platform for these intense flames. This design ensures rapid heat-up times and consistent cooking performance, crucial for professional catering where speed and quality are paramount.
Technical Specifications
Product Type: Commercial Gas Jet Burner
Jet Count: 32 Jets
Burner Material: Cast Iron
Jet Material: Calibrated Brass
Approximate Diameter: 10.5 inches (267mm)
Gas Type: Liquefied Petroleum Gas (LPG)
Maximum Flow Rate:
Liquified Petroleum Gas (LPG): 100,500 BTU (29.4KW)

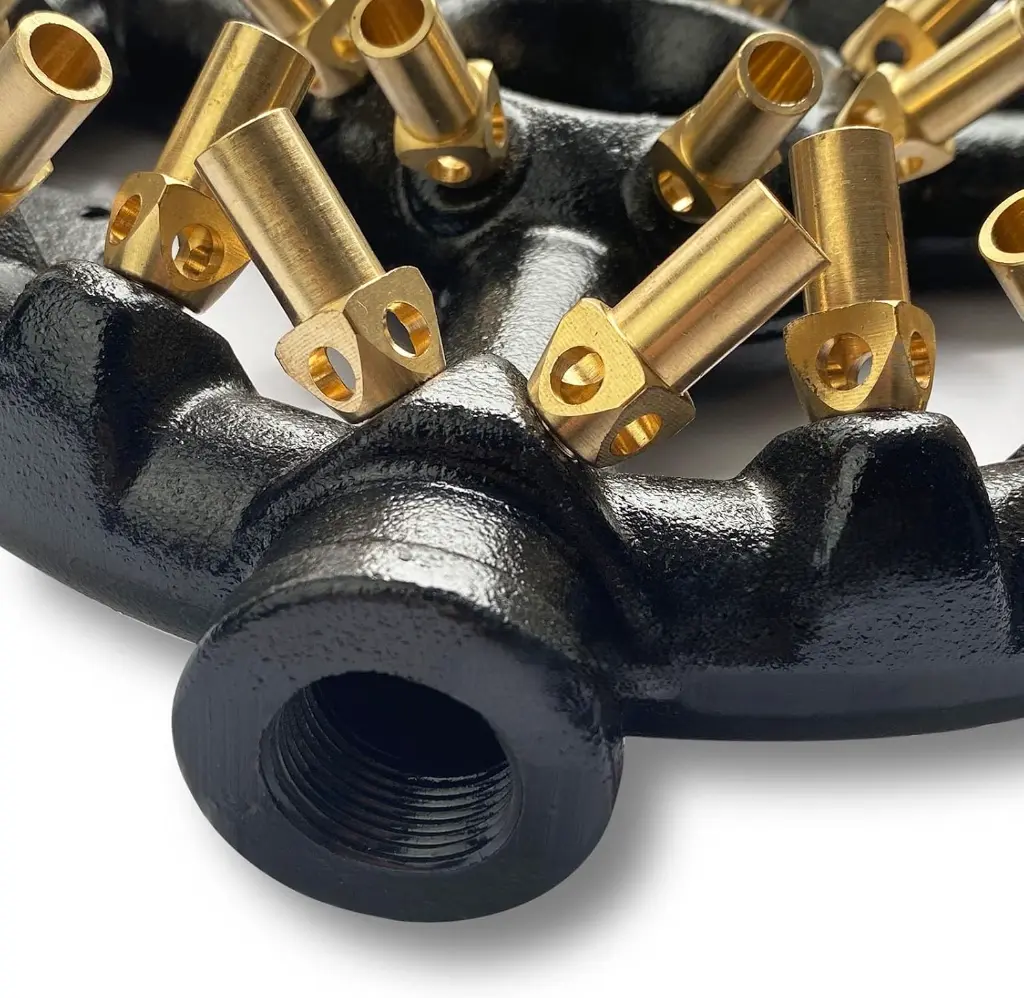

Gas Connection Size: Bottom Entry: 3/4" BSP
Intended Use: Primarily Outdoor Commercial Catering (can be used indoors with proper ventilation)
Certifications: AGA
Ideal Applications
This high-performance 32-jet gas burner is an indispensable component for:
Indian Stock-Pot Cookers: Delivering intense heat for large-volume curries, gravies, and rice dishes.
Chinese Wok Cookers: Providing the high, concentrated heat necessary for authentic stir-frying.
Commercial Hot Plate Ranges: Ensuring powerful and consistent heating for griddles and large cooking surfaces.
Outdoor Catering Setups: Robust and powerful for mobile catering, food stalls, and outdoor events.
Brewing & Distilling: For heating large kettles and stills (ensure proper ventilation and safety).
Important Installation & Safety Notice
Installation, maintenance, and servicing of this gas burner must ONLY be performed by a fully qualified, Gas Safe Registered Engineer (or equivalent certified professional in your region) in strict accordance with all local gas regulations, safety codes, and the manufacturer's instructions. Always ensure the gas supply to the appliance is turned off and depressurized before any work is carried out. Incorrect installation, improper ventilation, or the use of the wrong gas type can lead to dangerous gas leaks, inefficient combustion, carbon monoxide poisoning, fire, explosion, or severe injury.
