Dual Ring Wok Burner Cast Iron Natural Gas or LPG Stove Stockpot Boiler
Dual Ring Wok Burner Cast Iron Natural Gas or LPG with Injectors

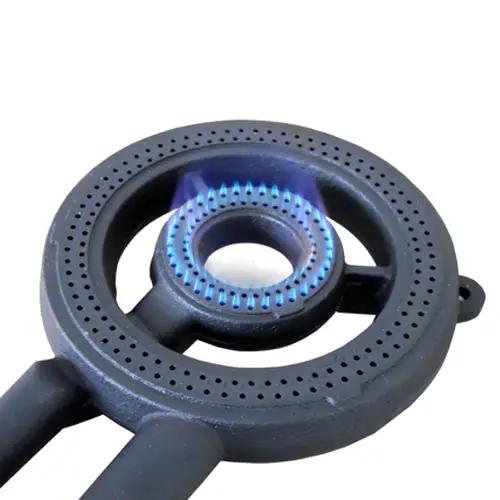

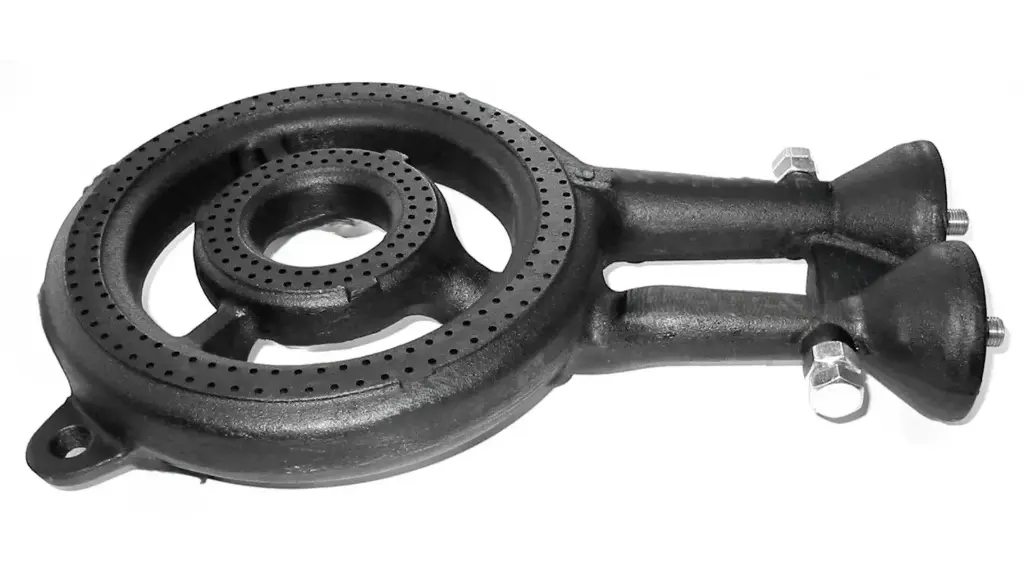

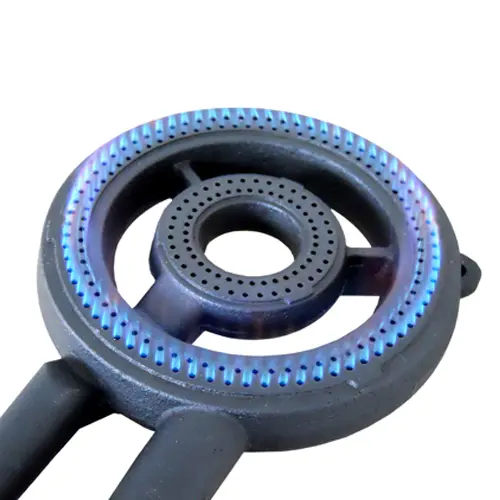

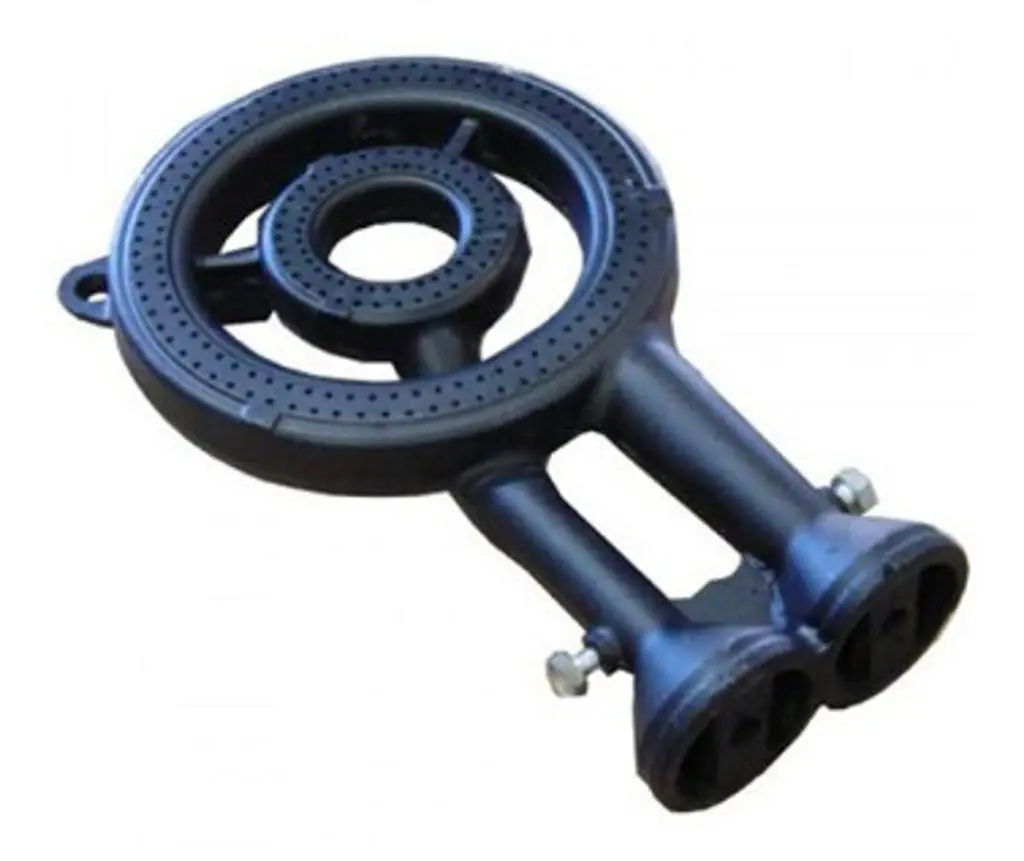

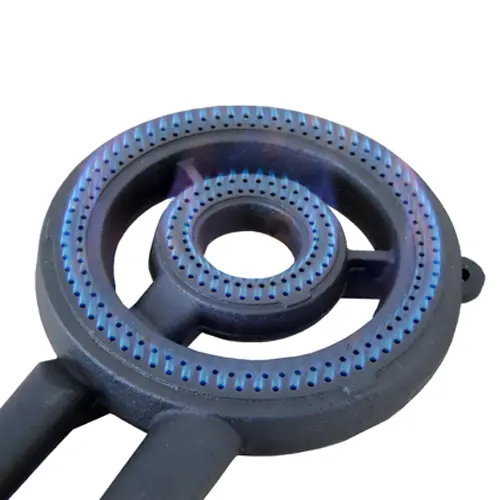

Our Dual Ring Burner is made of sturdy cast iron. This dual ring cast iron burner is suitable for replacement or manufacturing of brand new commercial equipment.
2 injectors of 0.68mm size are supplied and can be drilled to suit LP or Natural Gas by your gas fitter.
Recommended natural gas injector sizes: inner ring 2.1mm, outer ring 3.1mm
Approximate left injector inlet to right injector inlet 8cm (centre to centre)
Assembled Size: Length-0.410 mm x Height-0.120mm x Width-0.290 mm
Energy Type L.P.G. or Natural Gas
Product Net Weight 7.1
Heat Capacity 70 MJ
Gas Pressure 2.75 kPa L.P.G. / 1.00 kPa Natural
Important Installation & Safety Notice
Installation, maintenance, and servicing of this gas burner must ONLY be performed by a fully qualified, Gas Safe Registered Engineer (or equivalent certified professional in your region) in strict accordance with all local gas regulations, safety codes, and the manufacturer's instructions. Always ensure the gas supply to the appliance is turned off and depressurized before any work is carried out. Incorrect installation, improper ventilation, or the use of the wrong gas type can lead to dangerous gas leaks, inefficient combustion, carbon monoxide poisoning, fire, explosion, or severe injury.
